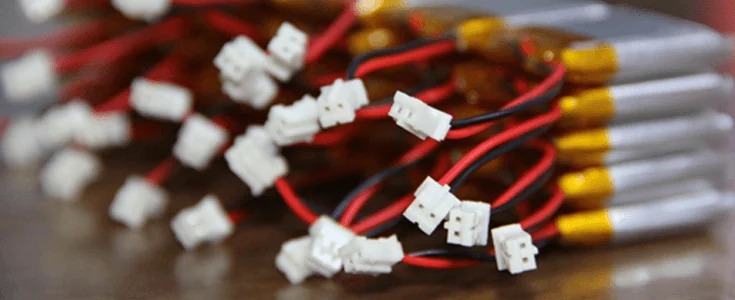

Battery Connector

All battery connectors from Molex or JST are available to add to our lipo battery with custom length of wires, wire sequence & wire colors.



Battery Connector Molex 51021-0200

The most popular battery connector for LiPo batteries.

Manufacturer:
Molex
Part Number:
51021-0200
Application:
single, wire to board or wire to wire
Circuits(max):
2
Pitch:
1.25mm(0.049’’)
Crimp Terminal:
50058, 50079
Mating wires:
UL1571 28/30/32AWG
Mating Parts:
51047 Crimp Housing, 53047 PCB Header, 53048 PCB Header, 53261 PCB Header, 53398 PCB Header
Link:

molex 51021-0200molex 51021-0200




Battery Connector Molex 51021-0300

The most popular 3P battery connector for LiPo batteries with NTC connection.

Manufacturer:
Molex
Part Number:
51021-0300
Application:
single, wire to board or wire to wire
Circuits(max):
3
Pitch:
1.25mm(0.049’’)
Crimp Terminal:
50058, 50079
Mating wires:
UL1571 28/30/32AWG
Mating Parts:
51047 Crimp Housing, 53047 PCB Header, 53048 PCB Header, 53261 PCB Header, 53398 PCB Header
Link:

molex 51021-0300




Battery Connector JST SHR-02V-S-B

It's much smaller battery connector with pitch 1.0mm for LiPo batteries.

Manufacturer:
JST
Part Number:
SHR-02V-S-B
Application:
Wire to Board Crimp style Connectors
Circuits(max):
2
Pitch:
1.00mm(0.039’’)
Crimp Terminal:
SSH-003T-P0.2-H
Mating wires:
UL1571 28/30/32AWG
Mating Parts:
BM02B-SRSS-TB
Link:

jst shr02v-s-b


Battery Connector JST SHR-03V-S-B

It's much smaller 3P connector with pitch 1.0mm for LiPo batteries and NTC.

Manufacturer:
JST
Part Number:
SHR-03V-S-B
Application:
Wire to Board Crimp style Connectors
Circuits(max):
3
Pitch:
1.00mm(0.039’’)
Crimp Terminal:
SSH-003T-P0.2-H
Mating wires:
UL1571 28/30/32AWG
Mating Parts:
BM03B-SRSS-TB
Link:

jst-3p




Battery Connector JST ACHR-02V-S

It's the smallest battery connector for connection PCB and lithium polymer battery in a limited space.

Manufacturer:
JST
Part Number:
ACHR-02V-S
Application:
Wire to Board Crimp style Connectors
Circuits(max):
2
Pitch:
1.20mm(0.047’’)
Crimp Terminal:
SACH-003G-P0.2, SACH-003G-P0.2B
Mating wires:
UL1571 28/30/32AWG
Mating Parts:
BM02B-ACHSS-GAN-ETF
Link:

jst achrjst achr-02v-s




Battery Connector JST ACHR-03V-S

It's the best connection solution for connection in narrowapplication.

Manufacturer:
JST
Part Number:
ACHR-03V-S
Application:
Wire to Board Crimp style Connectors
Circuits(max):
3
Pitch:
1.20mm(0.047’’)
Crimp Terminal:
SACH-003G-P0.2, SACH-003G-P0.2B
Mating wires:
UL1571 28/30/32AWG
Mating Parts:
BM03B-ACHSS-GAN-ETF
Link:

jst achrjst achrjst-achr




Battery Connector Molex 50-37-5023 (5264-02)

It's a popular battery connector with pitch 2.5mm and friction lock for wire to board.

Manufacturer:
Molex
Part Number:
50-37-5023 (5264-02)
Application:
Wire to Board, Friction lock Connectors
Circuits(max):
2
Pitch:
2.5mm(0.098’’)
Crimp Terminal:
08-70-1039
Mating wires:
UL1571 22/24/26/28AWG
Mating Parts:
5267 vertical shrouded PCB header, 5268 right angle shrouded PCB header
Link:

molex 50375023molex 50375023




Battery Connector Molex 50-37-5033 (5264-03)

It's a popular battery connector with pitch 2.5mm and friction lock for wire to board and NTC/thermister.

Manufacturer:
Molex
Part Number:
50-37-5033 (5264-03)
Application:
Wire to Board, Friction lock Connectors
Circuits(max):
3
Pitch:
2.5mm(0.098’’)
Crimp Terminal:
08-70-1039
Mating wires:
UL1571 22/24/26/28AWG
Mating Parts:
5267 vertical shrouded PCB header, 5268 right angle shrouded PCB header
Link:

molex 50375033molex 50375033molex 50375033molex 50375033




Battery Connector JST PHR-2

The dimple at the center of the contact ensures positive contact and low contact resistance for lipo batteries at all times.

Manufacturer:
JST
Part Number:
PH-2, PHR-2, PH connector
Application:
Wire to Board Crimp style Connectors
Circuits(max):
2
Pitch:
2.0mm (0.078’’)
Crimp Terminal:
SPH-002T-P0.5S, SPH-002T-P0.5L, SPH-004T-P0.5S
Mating wires:
UL1571 24/26/28/30/32AWG
Mating Parts:
B2B-PH-K-S, S2B-PH-K-S
Link:

jst phr-2jst phr-2jst phr-2jst phr-2




Battery Connector JST PHR-3

The dimple at the center of the contact ensures positive contract and low contact resistance battery connectors for lipo batteries at all times.

Manufacturer:
JST
Part Number:
PH-3, PHR-3, PH connector
Application:
Wire to Board Crimp style Connectors
Circuits(max):
3
Pitch:
2.0mm (0.078’’)
Crimp Terminal:
SPH-003T-P0.5S, SPH-003T-P0.5L, SPH-004T-P0.5S
Mating wires:
UL1571 24/26/28/30/32AWG
Mating Parts:
B3B-PH-K-S, S3B-PH-K-S
Link:

jst phr-3jst phr-3jst phr-3jst phr-3




Battery Connector JST XHP-2

It's a high reliability and versatility battery connectors for lipo batteries with 2P and clips.

Manufacturer:
JST
Part Number:
XH-2, XHP-2, XH connector
Application:
Wire to Board Crimp style Connectors
Circuits(max):
2
Pitch:
2.5mm (0.098’’)
Crimp Terminal:
SXH-001T-P0.6N, SXH-001T-P0.6
Mating wires:
AWG#22
Mating Parts:
B2B-XH-A, B2B-XH-2
Link:

jst xhr-2jst xhr-2jst xhr-2jst xhr-2




Battery Connector JST XHP-3

It's a high reliability and versatility battery connector for lipo batteries with 3P and clips.

Manufacturer:
JST
Part Number:
XH-3, XHP-3, XH connector
Application:
Wire to Board Crimp style Connectors
Circuits(max):
3
Pitch:
2.5mm (0.098'')
Crimp Terminal:
SXH-001T-P0.6N, SXH-001T-P0.6
Mating wires:
AWG#22
Mating Parts:
B3B-XH-A, B3B-XH-2
Link:

jst xhr-3jst xhr-3jst xhp-3jst xhr-3


Battery Connector JST SYR-02T/02TY & SYP-02T/02TV-1

It's a better solution of wire to wire battery connector with higher current and voltage.

Manufacturer:
JST
Part Number:
RCY connector, SYR-02T/SYR-02TY, SYP-02T-1/SYP-02TV-1
Application:
Wire to Wire Connector, Crimp style with locking device
Circuits(max):
2
Pitch:
2.5mm(0.059’’)
Crimp Terminal:
SCZH-002T-P0.5
Mating wires:
UL1571 26/28AWG
Mating Parts:
B02B-CZHK-B-1, S02B-CZHK-B-1, BM02B-CZSS-1-TF, SM02B-CZSS-1-TB
Link:

jst sypjst sypjst sypjst syp




Battery Connector JST ZHR-2

It's a also popular battery connector with 1.5mm pitch.

Manufacturer:
JST
Part Number:
ZHR-2
Application:
Disconnectable crimp style connectors
Circuits(max):
2
Pitch:
1.5mm(0.098'')
Crimp Terminal:
SZH-002T-P0.5, SZH-003T-P0.5
Mating wires:
UL1571 26/28/30/32/AWG
Mating Parts:
B2B-ZR, S2B-ZR, B2B-ZR-3.4, S2B-ZR-3.4
Link:




Battery Connector JST ZHR-3

It's a also populer battery connector with 1.5mm pitch.

Manufacturer:
JST
Part Number:
ZHR-3
Application:
Disconnectable crimp style connectors
Circuits(max):
3
Pitch:
1.5mm(0.098’’)
Crimp Terminal:
SZH-002T-P0.5, SZH-003T-P0.5
Mating wires:
UL1571 26/28/30/32/AWG
Mating Parts:
B3B-ZR, S3B-ZR, B3B-ZR-3.4, S3B-ZR-3.4
Link:




Battery Connector Molex 78172-0002

It's a samller and populer battery connector with 1.2mm pitch.

Manufacturer:
Molex
Part Number:
78172-0002
Application:
Wire to Board Housing connector
Circuits(max):
2
Pitch:
1.2mm(0.047’’)
Crimp Terminal:
78172-0410
Mating wires:
UL1007 28/30AWG
Mating Parts:
78171-0002
Link:




Battery Connector Molex 78172-0003

It's a samller and populer battery connector with 1.2mm pitch.

Manufacturer:
Molex
Part Number:
78172-0003
Application:
Wire to Board Housing connector
Circuits(max):
3
Pitch:
1.2mm(0.047’’)
Crimp Terminal:
78172-0410
Mating wires:
UL1007 28/30AWG
Mating Parts:
78171-0003
Link:




Battery Connector JST SUR connector

The world's first 0.8mm pitch wire-to-board insulation displacement battery connector is connected lipo battery for wearable products.

Manufacturer:
JST
Part Number:
02SUR-32S, 03SUR-36L, 03SUR-32S, 03SUR-36L, 04SUR-32S, 04SUR-36L, 05SUR-32S, 05SUR-36L
Application:
Disconnectable Insulation Displacement Connector
Circuits(max):
2 to 22
Pitch:
0.8mm (0.031’’)
Crimp Terminal:
NO
Mating wires:
UL1007 AWG32 or AWG36
Mating Parts:
BM02B-SURS-TF, SM02B-SURS-TF, BM03B-SURS-TF, SM03B-SURS-TF, BM04B-SURS-TF, SM04B-SURS-TF
Link:


Battery Connector Hirose DF65-3S-1.7C

Low Profile Wire-to-Board 1.7mm Pitch Battery Connectors for Power Supplier of LiPo Battery

Manufacturer:
Hirose
Part Number:
DF65-3S-1.7C, DF65-4S-1.7C, DF65-5S-1.7C, DF65-6S-1.7C, DF65-7S-1.7C
Application:
Wire-to-Board
Circuits(max):
3 to 7
Pitch:
1.7mm (0.0669’’)
Crimp Terminal:
DF65-2428SCF, DF65-2428SCFA
Mating wires:
AWG24 (11*0.16mm), AWG26 (7*0.16mm), AWG28 (7*0.127mm)
Mating Parts:
DF65-3P-1.7V, DF65-4P-1.7V, DF65-5P-1.7V, DF65-6P-1.7V, DF65-7P-1.7V
Link:


Battery Connector Hirose DF13-2S-1.25C / DF13-3S-1.25C

Pitch Miniature Crimping 1.25mm popular battery connector

Manufacturer:
Hirose
Part Number:
DF13-2S-1.25C, DF13-3S-1.25C, DF13-4S-1.25C, DF13-5S-1.25C, DF13-6S-1.25C, DF13-7S-1.25C,
Application:
Wire-to-Board
Circuits(max):
2 to 15
Pitch:
1.25mm (0.049’’)
Crimp Terminal:
DF13-2630SCF, DF13-3032SCF, DF13-3032SCFA
Mating wires:
AWG26 (7*0.16mm), AWG28 (7*0.127mm), AWG30 (7*0.1mm)
Mating Parts:
DF13-2P-1.25DSA, DF13-2P-1.25DS, DF13-2P-1.25V, DF13A-2P-1.25H
Link:


Battery Connector JST SUHR-02V-S-B

SUH battery connector have the smallest 0.8mm pitch wire to board insulation displacement connector.

Manufacturer:
JST
Part Number:
SUHR-02V-S-B, SUHR-03V-S-B, SUHR-04V-S-B, SUHR-05V-S-B, SUHR-06V-S-B, SUHR-07V-S-B
Application:
Wire-to-Board
Circuits(max):
2 to 20
Pitch:
0.8mm (0.0314’’)
Crimp Terminal:
SSUH-003T-P0.15, SSUH-0035T-P0.15
Mating wires:
AWG32, AWG30, AWG28
Mating Parts:
BM02B-SURS-TF, SM02B-SURS-TF, BM03B-SURS-TF, SM03B-SURS-TF, BM04B-SURS-TF, SM04B-SURS-TF
Link:


Battery Connector Hirose DF52-2P-0.8C

SUH battery connector have the smallest 0.8mm pitch wire to board insulation displacement connector.

Manufacturer:
Hirose
Part Number:
DF52-2P-0.8C, DF52-3P-0.8C, DF52-4P-0.8C, DF52-5P-0.8C, DF52-6P-0.8C, DF52-7P-0.8C
Application:
Wire-to-Board
Circuits(max):
2 to 20
Pitch:
0.8mm (0.0314’’)
Crimp Terminal:

DF52-2832PCF

Mating wires:
AWG32, AWG30, AWG28
Mating Parts:
DF52-2S-0.8H(21), DF52-3S-0.8H(21), DF52-4S-0.8H(21), DF52-5S-0.8H(21), DF52-6S-0.8H(21)
Link:


Battery Connector JST ADHR-03V-H

JST ADHR-03V-H is lower profile typre of battery connector with height 1.9mm. The ultrathin battery series with this connector is using thinner applications.

Manufacturer:
JST
Part Number:
ADHR-03V-H
Application:
Wire-to-Board
Circuits(max):
3 & 5
Pitch:
1.3mm (0.0511’’)
Crimp Terminal:

SADH-002G-P0.2, SAD-003-P0.2

Mating wires:
AWG26, AWG28
Mating Parts:
BM02(3)B-ADHSS-GAN-ETB, BM03B-ADHKS-GAN-ETB, BM05B-ADHKS-GAN-ETB(HF)
Link:


Battery Connector Molex 51047-0200

1.25mm Pitch wire to wire plug housing 51021-0200

Manufacturer:
Molex
Part Number:
51047-0200, 51047-0300
Application:
Wire-to-wire
Circuits(max):
2 to 10
Pitch:
1.25mm (0.049’’)
Crimp Terminal:
0501258000 & 0501338000
Mating wires:
AWG28, AWG30, AWG32
Mating Parts:
51021-0200, 50121-0300
Link:


Battery Connector Molex 504051-0401

It's anther smaller hight 2.00mm with 4 circuits battery connector

Manufacturer:
Molex
Part Number:
504051-0401, 504051-0501, 504051-0601
Application:
Wire-to-board header
Circuits(max):
4 to 12
Pitch:
1.5mm (0.059’’)
Crimp Terminal:
5040520098
Mating wires:
AWG24, AWG26, AWG28
Mating Parts:
5040500491, 5040500591, 5040500691
Link:


Battery Connector Molex 90156

It's a single row with 2.54mm pitch battery connector.

Manufacturer:
Molex
Part Number:
90156-0142, 90156-0143, 90156-0144, 90156-0145
Application:
Wire-to-board header
Circuits(max):
2 to 32
Pitch:
2.54mm (0.0762’’)
Crimp Terminal:
0901190109, 0901190110, 0901190110, 0901190111
Mating wires:
AWG22, AWG24
Mating Parts:
90120, 90121, 90136
Link:


Battery Connector Molex 51004/51065

It's anther popular battery connector 2.00mm Pitch made by Molex

Manufacturer:
Molex
Part Number:
51004-0200, 51004-0300, 51004-0400
Application:
Wire-to-board header
Circuits(max):
2 to 10
Pitch:
2.00mm (0.0787’’)
Crimp Terminal:
50011
Mating wires:
AWG24, AWG26, AWG28, AWG30
Mating Parts:
53253, 53254
Link:




© 2002 - 2024 LiPol Battery Co., Ltd. All Rights Reserved
