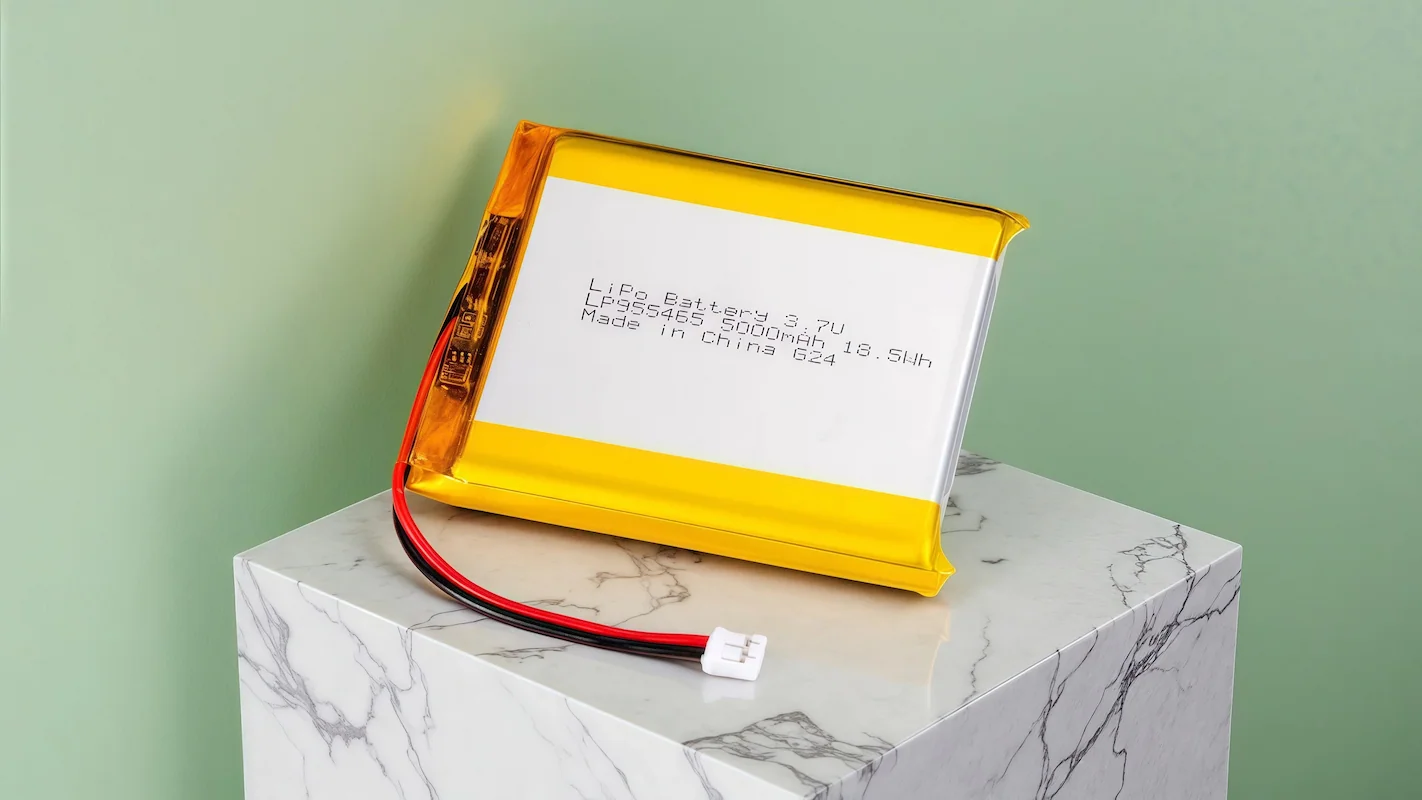

Your Partner for Bespoke Li-Polymer Battery Manufacturing LP955465
From Concept to Casing—Total Customized Power Solutions
Don't let power constraints limit your design. As a leading Li-Po manufacturer, we offer full OEM/ODM services, providing the engineering expertise, intelligent protection circuitry, and custom enclosures your unique project requires.
Battery Type |
LiPo Battery (Li-Polymer Battery) |
Part Number |
LP955465 / 955465 |
Voltage @ Capacity |
3.7V @ 5000mAh 18.5Wh |
Protection Circuit |
Yes |
Thermistor (NTC) |
- |
Wires |
UL1571 AWG26 50mm x 2 |
Connector |
JST PHR-2 (B) |
Dimension |
66 x 54 x 9,5mm |
Charge Current |
1.0A to 2.0A |
Discharge Current |
1.0A to 3.0A |
Other |
Fill out my online form.
Li Polymer Battery 5000mAh List
| model | capacity | Dimensions | Voltage |
| LP26108143 | 5000 mAh | 2.6 * 108 * 143 mm | 3.7V |
| LP27108150 | 5000 mAh | 2.7 * 108 * 150 mm | 3.7V |
| LP3095123 | 5000 mAh | 3 * 95 * 123 mm | 3.7V |
| LP32103100 | 5000 mAh | 3.2 * 103 * 100 mm | 3.7V |
| LP3596105 | 5000 mAh | 3.5 * 96 * 105 mm | 3.7V |
| LP3710398 | 5000 mAh | 3.7 * 103 * 98 mm | 3.7V |
| LP3879137 | 5000 mAh | 3.8 * 79 * 137 mm | 3.7V |
| LP4080113 | 5000 mAh | 4 * 80 * 113 mm | 3.7V |
| LP45102120 | 5000 mAh | 4.5 * 102 * 120 mm | 3.7V |
| LP4667115 | 5000 mAh | 4.6 * 67 * 115 mm | 3.7V |
| LP4776110 | 5000 mAh | 4.7 * 76 * 110 mm | 3.7V |
| LP5070102 | 5000 mAh | 5 * 70 * 102 mm | 3.7V |
| LP5070115 | 5000 mAh | 5 * 70 * 115 mm | 3.7V |
| LP509095 | 5000 mAh | 5 * 90 * 95 mm | 3.7V |
| LP5254138 | 5000 mAh | 5.2 * 54 * 138 mm | 3.7V |
| LP5360105 | 5000 mAh | 5.3 * 60 * 105 mm | 3.7V |
| LP538090 | 5000 mAh | 5.3 * 80 * 90 mm | 3.7V |
| LP5556136 | 5000 mAh | 5.5 * 56 * 136 mm | 3.7V |
| LP5565110 | 5000 mAh | 5.5 * 65 * 110 mm | 3.7V |
| LP5565112 | 5000 mAh | 5.5 * 65 * 112 mm | 3.7V |
| LP5565113 | 5000 mAh | 5.5 * 65 * 113 mm | 3.7V |
| LP5666113 | 5000 mAh | 5.6 * 66 * 113 mm | 3.7V |
| LP5863106 | 5000 mAh | 5.8 * 63 * 106 mm | 3.7V |
| LP5864100 | 5000 mAh | 5.8 * 64 * 100 mm | 3.7V |
| LP586888 | 5000 mAh | 5.8 * 68 * 88 mm | 3.7V |
| LP6053128 | 5000 mAh | 6 * 53 * 128 mm | 3.7V |
| LP6060110 | 5000 mAh | 6 * 60 * 110 mm | 3.7V |
| LP6065125 | 5000 mAh | 6 * 65 * 125 mm | 3.7V |
| LP606684 | 5000 mAh | 6 * 66 * 84 mm | 3.7V |
| LP6256105 | 5000 mAh | 6.2 * 56 * 105 mm | 3.7V |
| LP626290 | 5000 mAh | 6.2 * 62 * 90 mm | 3.7V |
| LP626595 | 5000 mAh | 6.2 * 65 * 95 mm | 3.7V |
| LP626699 | 5000 mAh | 6.2 * 66 * 99 mm | 3.7V |
| LP6457108 | 5000 mAh | 6.4 * 57 * 108 mm | 3.7V |
| LP646191 | 5000 mAh | 6.4 * 61 * 91 mm | 3.7V |
| LP6557105 | 5000 mAh | 6.5 * 57 * 105 mm | 3.7V |
| LP656395 | 5000 mAh | 6.5 * 63 * 95 mm | 3.7V |
| LP656396 | 5000 mAh | 6.5 * 63 * 96 mm | 3.7V |
| LP6565125 | 5000 mAh | 6.5 * 65 * 125 mm | 3.7V |
| LP6647112 | 5000 mAh | 6.6 * 47 * 112 mm | 3.7V |
| LP6649106 | 5000 mAh | 6.6 * 49 * 106 mm | 3.7V |
| LP667866 | 5000 mAh | 6.6 * 78 * 66 mm | 3.7V |
| LP6757105 | 5000 mAh | 6.7 * 57 * 105 mm | 3.7V |
| LP6762105 | 5000 mAh | 6.7 * 62 * 105 mm | 3.7V |
| LP6856105 | 5000 mAh | 6.8 * 56 * 105 mm | 3.7V |
| LP686095 | 5000 mAh | 6.8 * 60 * 95 mm | 3.7V |
| LP705590 | 5000 mAh | 7 * 55 * 90 mm | 3.7V |
| LP7059101 | 5000 mAh | 7 * 59 * 101 mm | 3.7V |
| LP706090 | 5000 mAh | 7 * 60 * 90 mm | 3.7V |
| LP715692 | 5000 mAh | 7.1 * 56 * 92 mm | 3.7V |
| LP7248115 | 5000 mAh | 7.2 * 48 * 115 mm | 3.7V |
| LP725888 | 5000 mAh | 7.2 * 58 * 88 mm | 3.7V |
| LP7350107 | 5000 mAh | 7.3 * 50 * 107 mm | 3.7V |
| LP7545122 | 5000 mAh | 7.5 * 45 * 122 mm | 3.7V |
| LP7555103 | 5000 mAh | 7.5 * 55 * 103 mm | 3.7V |
| LP756570 | 5000 mAh | 7.5 * 65 * 70 mm | 3.7V |
| LP766885 | 5000 mAh | 7.6 * 68 * 85 mm | 3.7V |
| LP785484 | 5000 mAh | 7.8 * 54 * 84 mm | 3.7V |
| LP805575 | 5000 mAh | 8 * 55 * 75 mm | 3.7V |
| LP805590 | 5000 mAh | 8 * 55 * 90 mm | 3.7V |
| LP805595 | 5000 mAh | 8 * 55 * 95 mm | 3.7V |
| LP805790 | 5000 mAh | 8 * 57 * 90 mm | 3.7V |
| LP806090 | 5000 mAh | 8 * 60 * 90 mm | 3.7V |
| LP806095 | 5000 mAh | 8 * 60 * 95 mm | 3.7V |
| LP8063164 | 5000 mAh | 8 * 63 * 164 mm | 3.7V |
| LP806583 | 5000 mAh | 8 * 65 * 83 mm | 3.7V |
| LP8347112 | 5000 mAh | 8.3 * 47 * 112 mm | 3.7V |
| LP8358101 | 5000 mAh | 8.3 * 58 * 101 mm | 3.7V |
| LP845590 | 5000 mAh | 8.4 * 55 * 90 mm | 3.7V |
| LP8542115 | 5000 mAh | 8.5 * 42 * 115 mm | 3.7V |
| LP865776 | 5000 mAh | 8.6 * 57 * 76 mm | 3.7V |
| LP886174 | 5000 mAh | 8.8 * 61 * 74 mm | 3.7V |
| LP886570 | 5000 mAh | 8.8 * 65 * 70 mm | 3.7V |
| LP9034128 | 5000 mAh | 9 * 34 * 128 mm | 3.7V |
| LP904890 | 5000 mAh | 9 * 48 * 90 mm | 3.7V |
| LP906068 | 5000 mAh | 9 * 60 * 68 mm | 3.7V |
| LP906070 | 5000 mAh | 9 * 60 * 70 mm | 3.7V |
| LP906772 | 5000 mAh | 9 * 67 * 72 mm | 3.7V |
| LP915087 | 5000 mAh | 9.1 * 50 * 87 mm | 3.7V |
| LP954190 | 5000 mAh | 9.5 * 41 * 90 mm | 3.7V |
| LP954896 | 5000 mAh | 9.5 * 48 * 96 mm | 3.7V |
| LP955378 | 5000 mAh | 9.5 * 53 * 78 mm | 3.7V |
| LP955465 | 5000 mAh | 9.5 * 54 * 65 mm | 3.7V |
| LP955778 | 5000 mAh | 9.5 * 57 * 78 mm | 3.7V |
| LP955880 | 5000 mAh | 9.5 * 58 * 80 mm | 3.7V |
| LP965673 | 5000 mAh | 9.6 * 56 * 73 mm | 3.7V |
| LP985166 | 5000 mAh | 9.8 * 51 * 66 mm | 3.7V |
| LP104479 | 5000 mAh | 10 * 44 * 79 mm | 3.7V |
| LP105078 | 5000 mAh | 10 * 50 * 78 mm | 3.7V |
| LP105080 | 5000 mAh | 10 * 50 * 80 mm | 3.7V |
| LP105374 | 5000 mAh | 10 * 53 * 74 mm | 3.7V |
| LP105575 | 5000 mAh | 10 * 55 * 75 mm | 3.7V |
| LP106090 | 5000 mAh | 10 * 60 * 90 mm | 3.7V |
| LP106168 | 5000 mAh | 10 * 61 * 68 mm | 3.7V |
| LP114865 | 5000 mAh | 11 * 48 * 65 mm | 3.7V |
| LP115073 | 5000 mAh | 11 * 50 * 73 mm | 3.7V |
| LP115075 | 5000 mAh | 11 * 50 * 75 mm | 3.7V |
| LP115271 | 5000 mAh | 11 * 52 * 71 mm | 3.7V |
| LP120546 | 5000 mAh | 12 * 54 * 65 mm | 3.7V |
| LP124080 | 5000 mAh | 12 * 40 * 80 mm | 3.7V |
| LP124175 | 5000 mAh | 12 * 41 * 75 mm | 3.7V |
| LP124770 | 5000 mAh | 12 * 47 * 70 mm | 3.7V |
| LP124861 | 5000 mAh | 12 * 48 * 61 mm | 3.7V |
| LP125278 | 5000 mAh | 12 * 52 * 78 mm | 3.7V |
| LP125465 | 5000 mAh | 12 * 54 * 65 mm | 3.7V |
| LP125860 | 5000 mAh | 12 * 58 * 60 mm | 3.7V |
| LP645893 | 5050 mAh | 6.4 * 58 * 93 mm | 3.7V |
| LP955385 | 5100 mAh | 9.5 * 53 * 85 mm | 3.7V |
| LP114187 | 5100 mAh | 11 * 41 * 87 mm | 3.7V |
| LP114287 | 5100 mAh | 11 * 42 * 87 mm | 3.7V |
| LP855290 | 5200 mAh | 8.5 * 52 * 90 mm | 3.7V |
| LP9035135 | 5200 mAh | 9 * 35 * 135 mm | 3.7V |
| LP5465125 | 5250 mAh | 5.4 * 65 * 125 mm | 3.7V |
| LP924990 | 5300 mAh | 9.2 * 49 * 90 mm | 3.7V |
| LP4395112 | 5400 mAh | 4.3 * 95 * 112 mm | 3.7V |
| LP45100100 | 5400 mAh | 4.5 * 100 * 100 mm | 3.7V |
| LP7850116 | 5400 mAh | 7.8 * 50 * 116 mm | 3.7V |
| LP816488 | 5400 mAh | 8.1 * 64 * 88 mm | 3.7V |
| LP857854 | 5400 mAh | 8.5 * 78 * 54 mm | 3.7V |
| LP115472 | 5400 mAh | 11 * 54 * 72 mm | 3.7V |
| LP4772135 | 5500 mAh | 4.7 * 72 * 135 mm | 3.7V |
| LP6066113 | 5500 mAh | 6 * 66 * 113 mm | 3.7V |
| LP638095 | 5500 mAh | 6.3 * 80 * 95 mm | 3.7V |
| LP7552113 | 5500 mAh | 7.5 * 52 * 113 mm | 3.7V |
| LP7855105 | 5500 mAh | 7.8 * 55 * 105 mm | 3.7V |
| LP105781 | 5500 mAh | 10 * 57 * 81 mm | 3.7V |
| LP124585 | 5500 mAh | 12 * 45 * 85 mm | 3.7V |
| LP856980 | 5600 mAh | 8.5 * 69 * 80 mm | 3.7V |
| LP976175 | 5600 mAh | 9.7 * 61 * 75 mm | 3.7V |
| LP105867 | 5600 mAh | 10 * 58 * 67 mm | 3.7V |
| LP546696 | 5700 mAh | 5.4 * 66 * 96 mm | 3.7V |
| LP7249135 | 5700 mAh | 7.2 * 49 * 135 mm | 3.7V |
| LP7555115 | 5700 mAh | 7.5 * 55 * 115 mm | 3.7V |
| LP7555118 | 5700 mAh | 7.5 * 55 * 118 mm | 3.7V |
| LP7767100 | 5700 mAh | 7.7 * 67 * 100 mm | 3.7V |
| LP114190 | 5700 mAh | 11 * 41 * 90 mm | 3.7V |
| LP5559150 | 5800 mAh | 5.5 * 59 * 150 mm | 3.7V |
| LP7548118 | 5800 mAh | 7.5 * 48 * 118 mm | 3.7V |
| LP906090 | 5800 mAh | 9 * 60 * 90 mm | 3.7V |
| LP986771 | 5800 mAh | 9.8 * 67 * 71 mm | 3.7V |
| LP105974 | 5800 mAh | 10 * 59 * 74 mm | 3.7V |
| LP116075 | 5800 mAh | 11 * 60 * 75 mm | 3.7V |
| LP905298 | 5900 mAh | 9 * 52 * 98 mm | 3.7V |
| LP926183 | 5900 mAh | 9.2 * 61 * 83 mm | 3.7V |
