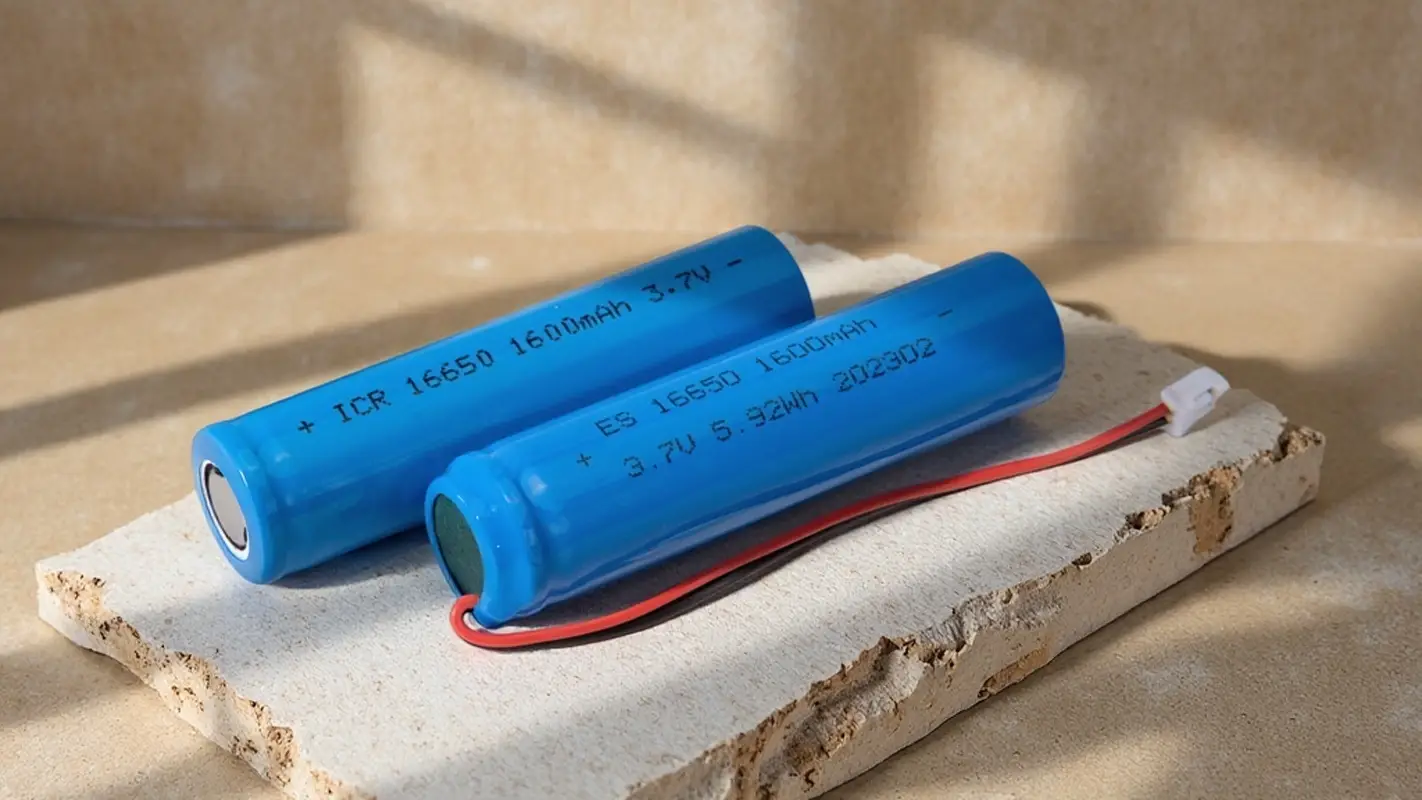

Li ion Rechargeable Battery 3.7V LP16650
Li ion Rechargeable Batteries with Full Certificates
Li ion rechargeable batteries with full IEC62133, CE, UN38.3, RoHS, and REACH compliance. Ideal for EU market consumer electronics. Download certifications and request samples for testing.
Battery Type |
Li ion Battery (Lthium-ion Battery) |
Part Number |
LP16650 / 16650 / ICR16650 |
Voltage @ Capacity |
3.7V @ 1600mAh 5.92Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
UL1007 24AWG 65mm*2 |
Connector |
JST PHR-2 |
Dimension |
φ16.00 x 70.00mm |
Charge Current |
1.0C to 2.0C |
Discharge Current |
1.0C to 3.0C |
Other |
Fill out my online form.
Li ion Battery List
| part number | Voltage | Capacity | C-Rate | Diameter (mm) | Height (mm) | Resistance | Weight |
| LP10180 | 3.7V | 80mAh | 5C | 10.25 | 17.50 | 120-125mΩ | 4.0g |
| LP10200 | 3.7V | 110mAh | 5C | 10.25 | 19.50 | 100-105mΩ | 4.5g |
| LP10280 | 3.7V | 180mAh | 5C | 10.25 | 27.30 | 90-95mΩ | 5.0g |
| LP10400 | 3.7V | 320mAh | 5C | 10.25 | 39.40 | 50-54mΩ | 7.7g |
| LP10440 | 3.7V | 350mAh | 5C | 10.25 | 43.00 | 46-50mΩ | 8.4g |
| LP10840 | 3.7V | 700mAh | 5C | 10.25 | 83.50 | 17-22mΩ | 20.0g |
| LP12630 | 3.7V | 700mAh | 5C | 12.70 | 62.85 | 17-22mΩ | 20.9g |
| LP12650 | 3.7V | 750mAh | 5C | 12.70 | 64.85 | 17-22mΩ | 21.2g |
| LP13310 | 3.7V | 450mAh | 5C | 13.10 | 30.50 | 38-43mΩ | 10.0g |
| LP13380 | 3.7V | 650mAh | 5C | 13.80 | 37.80 | 43-48mΩ | 14.3g |
| LP13430 | 3.7V | 880mAh | 5C | 13.80 | 42.80 | 42-47mΩ | 17.1g |
| LP14250 | 3.7V | 300mAh | 5C | 14.10 | 24.80 | 48-53mΩ | 8.9g |
| LP14280 | 3.7V | 450mAh | 5C | 14.10 | 27.30 | 46-51mΩ | 10.1g |
| LP14430A | 3.7V | 650mAh | 5C | 14.10 | 42.60 | 38-42mΩ | 16.7g |
| LP14430B | 3.7V | 920mAh | 5C | 14.10 | 42.60 | 22-27mΩ | 17.5g |
| LP14450 | 3.7V | 950mAh | 5C | 14.10 | 44.90 | 20-25mΩ | 18.8g |
| LP14500A | 3.7V | 800mAh | 3C | 14.10 | 48.50 | 34-38mΩ | 19.7g |
| LP14500B | 3.7V | 1000mAh | 5C | 14.10 | 48.50 | 21-24mΩ | 20.0g |
| LP14650 | 3.7V | 1100mAh | 8C | 14.10 | 64.85 | 16-19mΩ | 26.0g |
| LP15270 | 3.7V | 400mAh | 5C | 14.60 | 26.60 | 35-40mΩ | 9.5g |
| LP16280 | 3.7V | 600mAh | 5C | 16.55 | 28.00 | 18-23mΩ | 17.0g |
| LP16310 | 3.7V | 650mAh | 5C | 16.55 | 29.55 | 32-37mΩ | 15.6g |
| LP16340A | 3.7V | 600mAh | 10C | 16.55 | 33.20 | 18-23mΩ | 17.0g |
| LP16340B | 3.7V | 700mAh | 5C | 16.55 | 33.20 | 27-32mΩ | 17.6g |
| LP16450 | 3.7V | 1000mAh | 10C | 16.55 | 43.80 | 19-24mΩ | 23.5g |
| LP16500 | 3.7V | 1200mAh | 5C | 16.55 | 48.85 | 20-25mΩ | 27.2g |
| LP16650 | 3.7V | 1600mAh | 3C | 16.55 | 48.85 | 32-37mΩ | 34.3g |
| LP18350A | 3.7V | 800mAh | 10C | 18.20 | 34.00 | 20-25mΩ | 21.4g |
| LP18350B | 3.7V | 900mAh | 5C | 18.20 | 34.00 | 30-35mΩ | 21.4g |
| LP18500A | 3.7V | 1200mAh | 3C | 18.20 | 48.80 | 39-44mΩ | 31.0g |
| LP18500B | 3.7V | 1200mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 31.0g |
| LP18500C | 3.7V | 1400mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 32.8g |
| LP18500D | 3.7V | 2100mAh | 5C | 18.30 | 48.60 | 32-37mΩ | 34.7g |
