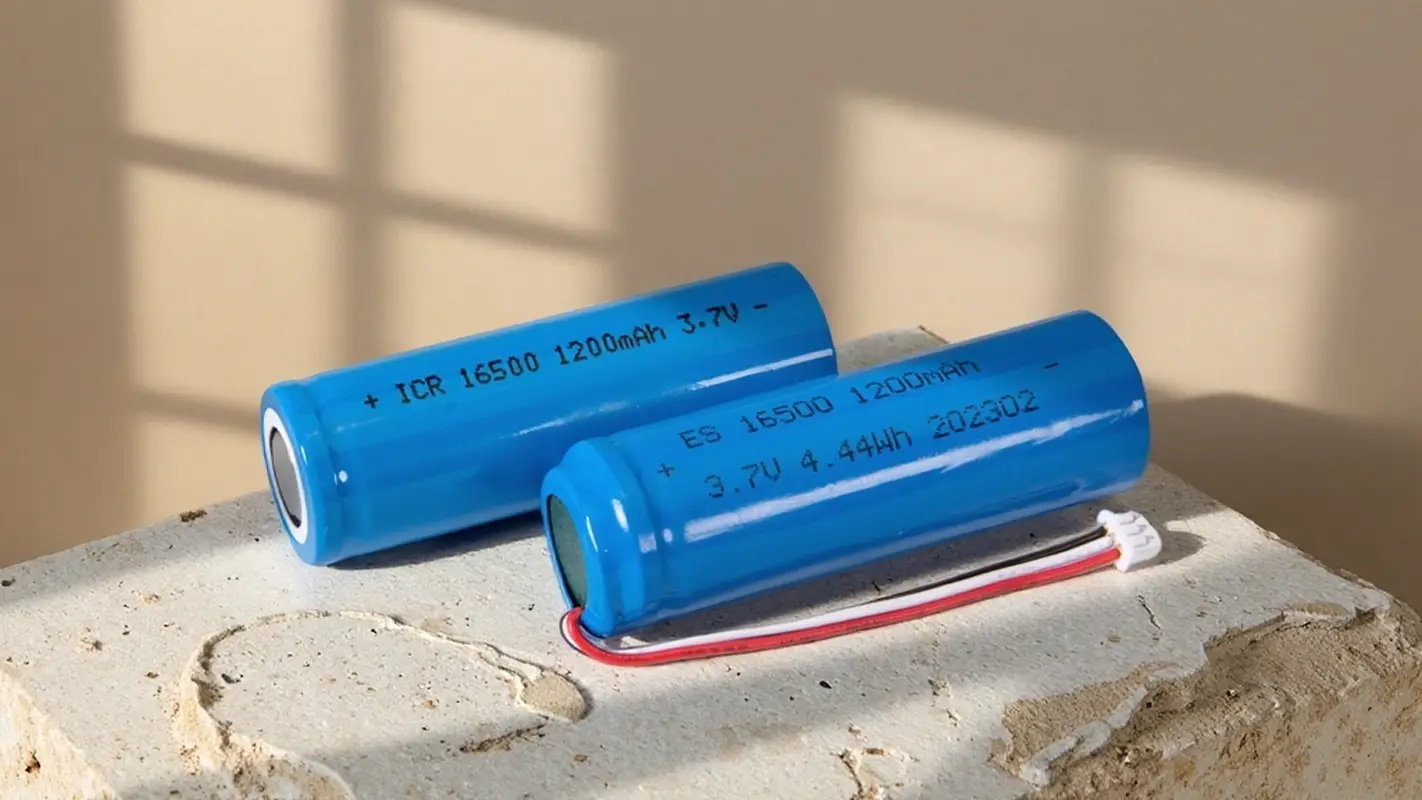

Li ion Rechargeable Battery 3.7V LP16500
for wearable devices. Maximize energy density in compact form factors.
Custom Li ion batteries with rounded, chamfered, or irregular shapes for wearable devices. Maximize energy density in compact form factors. MOQ from 5,000 units/year. Engineering consultation free.
Battery Type |
Li ion Battery (Lthium-ion Battery) |
Part Number |
LP16500 / 16500 / ICR16500 / ES16500 |
Voltage @ Capacity |
3.7V @ 1200mAh 4.44Wh |
Protection Circuit |
- |
Thermistor (NTC) |
10K±1% B3435 |
Wires |
UL1571 28AWG 50mm*3 |
Connector |
Molex 51021-0300(1.25mm) |
Dimension |
φ16.0 x 55.0mm |
Charge Current |
1.0C to 2.0C |
Discharge Current |
1.0C to 5.0C (limited by connector) |
Other |
Fill out my online form.
Li ion Battery List
| part number | Voltage | Capacity | C-Rate | Diameter (mm) | Height (mm) | Resistance | Weight |
| LP10180 | 3.7V | 80mAh | 5C | 10.25 | 17.50 | 120-125mΩ | 4.0g |
| LP10200 | 3.7V | 110mAh | 5C | 10.25 | 19.50 | 100-105mΩ | 4.5g |
| LP10280 | 3.7V | 180mAh | 5C | 10.25 | 27.30 | 90-95mΩ | 5.0g |
| LP10400 | 3.7V | 320mAh | 5C | 10.25 | 39.40 | 50-54mΩ | 7.7g |
| LP10440 | 3.7V | 350mAh | 5C | 10.25 | 43.00 | 46-50mΩ | 8.4g |
| LP10840 | 3.7V | 700mAh | 5C | 10.25 | 83.50 | 17-22mΩ | 20.0g |
| LP12630 | 3.7V | 700mAh | 5C | 12.70 | 62.85 | 17-22mΩ | 20.9g |
| LP12650 | 3.7V | 750mAh | 5C | 12.70 | 64.85 | 17-22mΩ | 21.2g |
| LP13310 | 3.7V | 450mAh | 5C | 13.10 | 30.50 | 38-43mΩ | 10.0g |
| LP13380 | 3.7V | 650mAh | 5C | 13.80 | 37.80 | 43-48mΩ | 14.3g |
| LP13430 | 3.7V | 880mAh | 5C | 13.80 | 42.80 | 42-47mΩ | 17.1g |
| LP14250 | 3.7V | 300mAh | 5C | 14.10 | 24.80 | 48-53mΩ | 8.9g |
| LP14280 | 3.7V | 450mAh | 5C | 14.10 | 27.30 | 46-51mΩ | 10.1g |
| LP14430A | 3.7V | 650mAh | 5C | 14.10 | 42.60 | 38-42mΩ | 16.7g |
| LP14430B | 3.7V | 920mAh | 5C | 14.10 | 42.60 | 22-27mΩ | 17.5g |
| LP14450 | 3.7V | 950mAh | 5C | 14.10 | 44.90 | 20-25mΩ | 18.8g |
| LP14500A | 3.7V | 800mAh | 3C | 14.10 | 48.50 | 34-38mΩ | 19.7g |
| LP14500B | 3.7V | 1000mAh | 5C | 14.10 | 48.50 | 21-24mΩ | 20.0g |
| LP14650 | 3.7V | 1100mAh | 8C | 14.10 | 64.85 | 16-19mΩ | 26.0g |
| LP15270 | 3.7V | 400mAh | 5C | 14.60 | 26.60 | 35-40mΩ | 9.5g |
| LP16280 | 3.7V | 600mAh | 5C | 16.55 | 28.00 | 18-23mΩ | 17.0g |
| LP16310 | 3.7V | 650mAh | 5C | 16.55 | 29.55 | 32-37mΩ | 15.6g |
| LP16340A | 3.7V | 600mAh | 10C | 16.55 | 33.20 | 18-23mΩ | 17.0g |
| LP16340B | 3.7V | 700mAh | 5C | 16.55 | 33.20 | 27-32mΩ | 17.6g |
| LP16450 | 3.7V | 1000mAh | 10C | 16.55 | 43.80 | 19-24mΩ | 23.5g |
| LP16500 | 3.7V | 1200mAh | 5C | 16.55 | 48.85 | 20-25mΩ | 27.2g |
| LP16650 | 3.7V | 1600mAh | 3C | 16.55 | 48.85 | 32-37mΩ | 34.3g |
| LP18350A | 3.7V | 800mAh | 10C | 18.20 | 34.00 | 20-25mΩ | 21.4g |
| LP18350B | 3.7V | 900mAh | 5C | 18.20 | 34.00 | 30-35mΩ | 21.4g |
| LP18500A | 3.7V | 1200mAh | 3C | 18.20 | 48.80 | 39-44mΩ | 31.0g |
| LP18500B | 3.7V | 1200mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 31.0g |
| LP18500C | 3.7V | 1400mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 32.8g |
| LP18500D | 3.7V | 2100mAh | 5C | 18.30 | 48.60 | 32-37mΩ | 34.7g |
