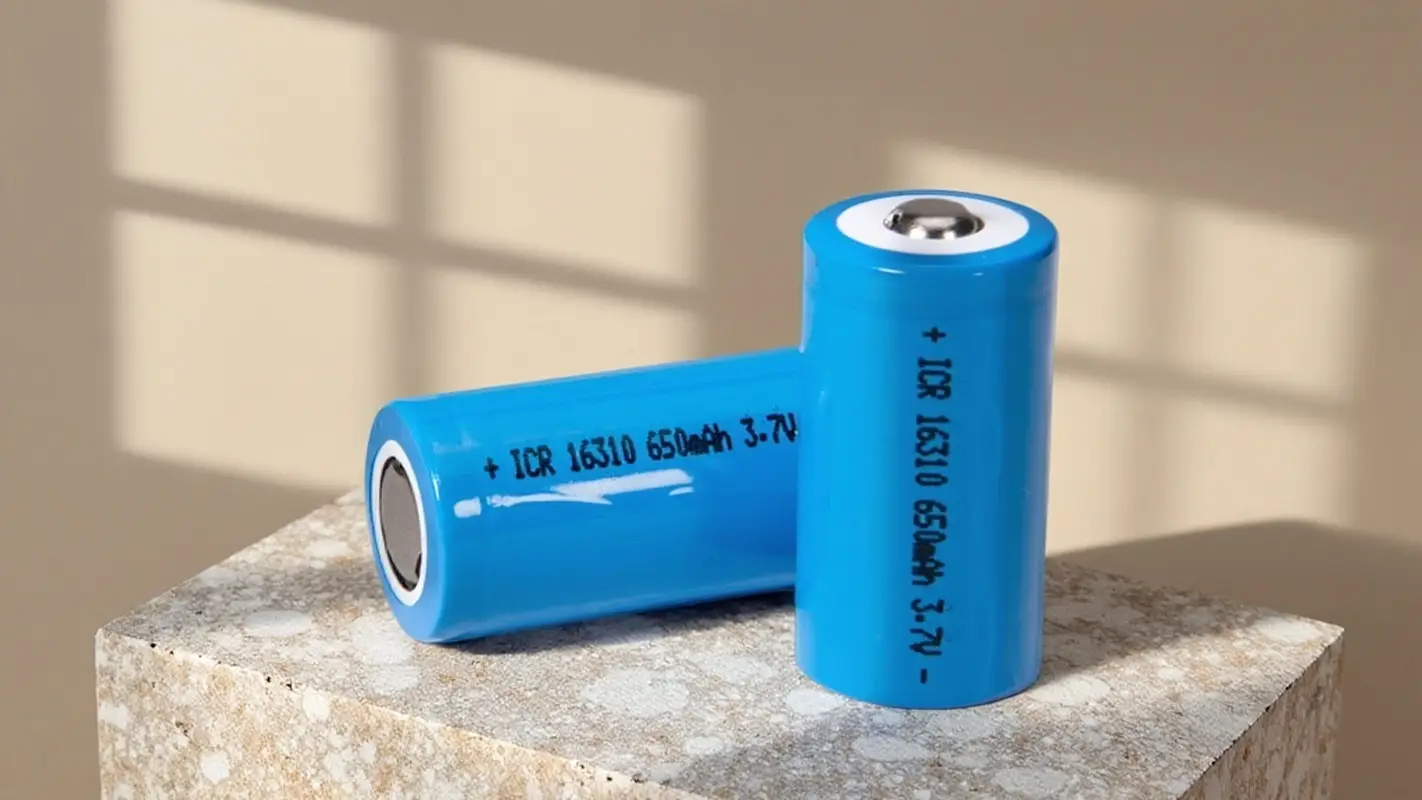

Li ion Rechargeable Battery 3.7V LP16310
for wearable devices. Maximize energy density in compact form factors.
Custom Li ion batteries with rounded, chamfered, or irregular shapes for wearable devices. Maximize energy density in compact form factors. MOQ from 5,000 units/year. Engineering consultation free.
Battery Type |
Li ion Battery (Lthium-ion Battery) |
Part Number |
LP16310 / 16310 / ICR16310 |
Voltage @ Capacity |
3.7V @ 650mAh 2.405Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
- |
Connector |
- |
Dimension |
φ16.0 x 31.0mm |
Charge Current |
1.0C to 2.0C |
Discharge Current |
1.0C to 5.0C |
Other |
Fill out my online form.
Li ion Battery List
| part number | Voltage | Capacity | C-Rate | Diameter (mm) | Height (mm) | Resistance | Weight |
| LP10180 | 3.7V | 80mAh | 5C | 10.25 | 17.50 | 120-125mΩ | 4.0g |
| LP10200 | 3.7V | 110mAh | 5C | 10.25 | 19.50 | 100-105mΩ | 4.5g |
| LP10280 | 3.7V | 180mAh | 5C | 10.25 | 27.30 | 90-95mΩ | 5.0g |
| LP10400 | 3.7V | 320mAh | 5C | 10.25 | 39.40 | 50-54mΩ | 7.7g |
| LP10440 | 3.7V | 350mAh | 5C | 10.25 | 43.00 | 46-50mΩ | 8.4g |
| LP10840 | 3.7V | 700mAh | 5C | 10.25 | 83.50 | 17-22mΩ | 20.0g |
| LP12630 | 3.7V | 700mAh | 5C | 12.70 | 62.85 | 17-22mΩ | 20.9g |
| LP12650 | 3.7V | 750mAh | 5C | 12.70 | 64.85 | 17-22mΩ | 21.2g |
| LP13310 | 3.7V | 450mAh | 5C | 13.10 | 30.50 | 38-43mΩ | 10.0g |
| LP13380 | 3.7V | 650mAh | 5C | 13.80 | 37.80 | 43-48mΩ | 14.3g |
| LP13430 | 3.7V | 880mAh | 5C | 13.80 | 42.80 | 42-47mΩ | 17.1g |
| LP14250 | 3.7V | 300mAh | 5C | 14.10 | 24.80 | 48-53mΩ | 8.9g |
| LP14280 | 3.7V | 450mAh | 5C | 14.10 | 27.30 | 46-51mΩ | 10.1g |
| LP14430A | 3.7V | 650mAh | 5C | 14.10 | 42.60 | 38-42mΩ | 16.7g |
| LP14430B | 3.7V | 920mAh | 5C | 14.10 | 42.60 | 22-27mΩ | 17.5g |
| LP14450 | 3.7V | 950mAh | 5C | 14.10 | 44.90 | 20-25mΩ | 18.8g |
| LP14500A | 3.7V | 800mAh | 3C | 14.10 | 48.50 | 34-38mΩ | 19.7g |
| LP14500B | 3.7V | 1000mAh | 5C | 14.10 | 48.50 | 21-24mΩ | 20.0g |
| LP14650 | 3.7V | 1100mAh | 8C | 14.10 | 64.85 | 16-19mΩ | 26.0g |
| LP15270 | 3.7V | 400mAh | 5C | 14.60 | 26.60 | 35-40mΩ | 9.5g |
| LP16280 | 3.7V | 600mAh | 5C | 16.55 | 28.00 | 18-23mΩ | 17.0g |
| LP16310 | 3.7V | 650mAh | 5C | 16.55 | 29.55 | 32-37mΩ | 15.6g |
| LP16340A | 3.7V | 600mAh | 10C | 16.55 | 33.20 | 18-23mΩ | 17.0g |
| LP16340B | 3.7V | 700mAh | 5C | 16.55 | 33.20 | 27-32mΩ | 17.6g |
| LP16450 | 3.7V | 1000mAh | 10C | 16.55 | 43.80 | 19-24mΩ | 23.5g |
| LP16500 | 3.7V | 1200mAh | 5C | 16.55 | 48.85 | 20-25mΩ | 27.2g |
| LP16650 | 3.7V | 1600mAh | 3C | 16.55 | 48.85 | 32-37mΩ | 34.3g |
| LP18350A | 3.7V | 800mAh | 10C | 18.20 | 34.00 | 20-25mΩ | 21.4g |
| LP18350B | 3.7V | 900mAh | 5C | 18.20 | 34.00 | 30-35mΩ | 21.4g |
| LP18500A | 3.7V | 1200mAh | 3C | 18.20 | 48.80 | 39-44mΩ | 31.0g |
| LP18500B | 3.7V | 1200mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 31.0g |
| LP18500C | 3.7V | 1400mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 32.8g |
| LP18500D | 3.7V | 2100mAh | 5C | 18.30 | 48.60 | 32-37mΩ | 34.7g |
