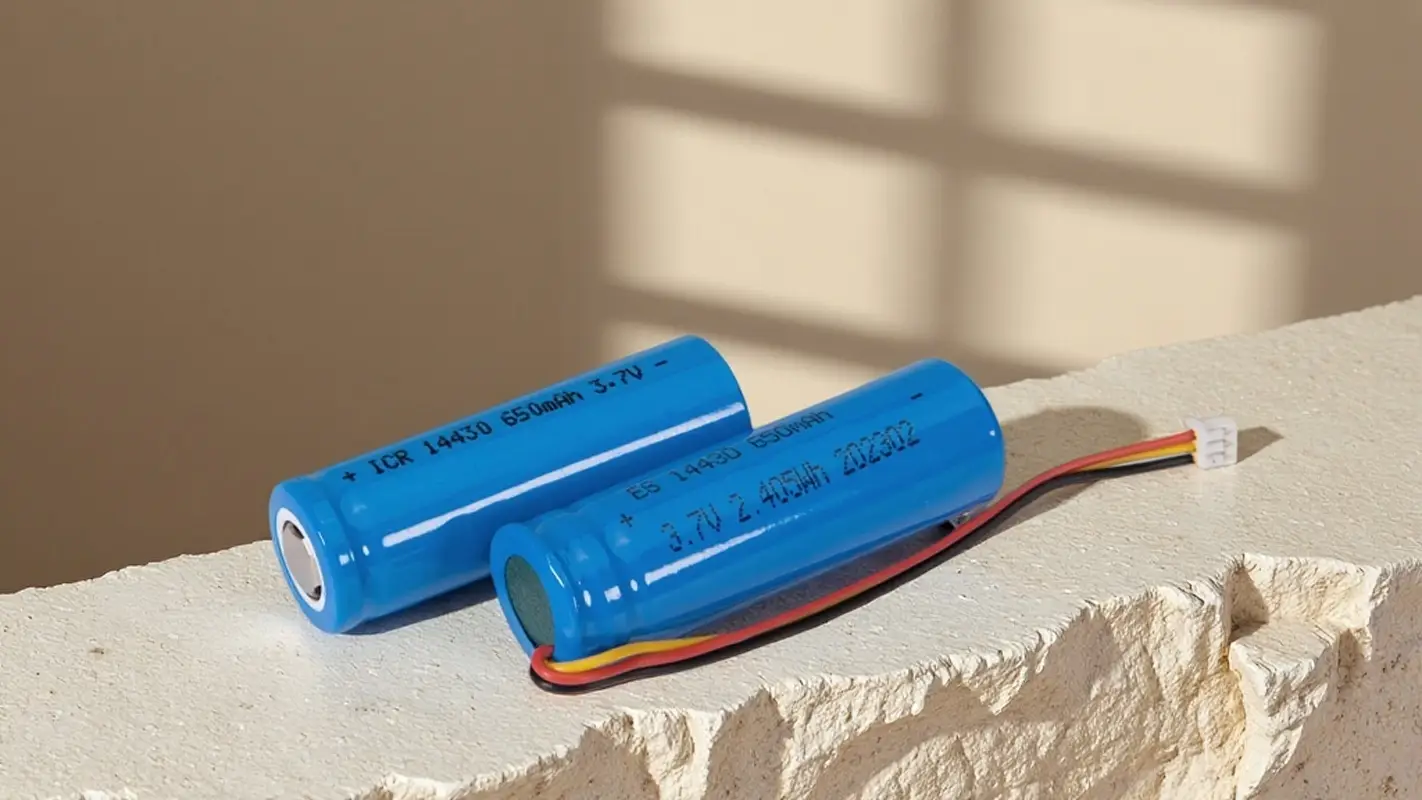

Li ion Rechargeable Battery 3.7V LP14430
Cylindrical Li ion rechargeable batteries with PCM protection
Cylindrical Li ion rechargeable batteries with PCM protection for smart footwear, insoles, and wearable apparel. Available from 10mm diameter. Request samples with stress test data sheets.
Battery Type |
Li ion Battery (Lthium-ion Battery) |
Part Number |
LP14430 / 14430 / ICR14430 |
Voltage @ Capacity |
3.7V @ 650mAh 2.405Wh |
Protection Circuit |
Yes. Short circuit, over-charge, over-discharge, temperature |
Thermistor (NTC) |
10K±1% B3435 |
Wires |
UL1571 28AWG 50mm*3 |
Connector |
Molex 51021-0300 (1.25mm) |
Dimension |
φ14.0 x 48mm |
Charge Current |
1.0C to 2.0C |
Discharge Current |
1.0C to 5.0C (limited by connector) |
Other |
Fill out my online form.
Li ion Battery List
| part number | Voltage | Capacity | C-Rate | Diameter (mm) | Height (mm) | Resistance | Weight |
| LP10180 | 3.7V | 80mAh | 5C | 10.25 | 17.50 | 120-125mΩ | 4.0g |
| LP10200 | 3.7V | 110mAh | 5C | 10.25 | 19.50 | 100-105mΩ | 4.5g |
| LP10280 | 3.7V | 180mAh | 5C | 10.25 | 27.30 | 90-95mΩ | 5.0g |
| LP10400 | 3.7V | 320mAh | 5C | 10.25 | 39.40 | 50-54mΩ | 7.7g |
| LP10440 | 3.7V | 350mAh | 5C | 10.25 | 43.00 | 46-50mΩ | 8.4g |
| LP10840 | 3.7V | 700mAh | 5C | 10.25 | 83.50 | 17-22mΩ | 20.0g |
| LP12630 | 3.7V | 700mAh | 5C | 12.70 | 62.85 | 17-22mΩ | 20.9g |
| LP12650 | 3.7V | 750mAh | 5C | 12.70 | 64.85 | 17-22mΩ | 21.2g |
| LP13310 | 3.7V | 450mAh | 5C | 13.10 | 30.50 | 38-43mΩ | 10.0g |
| LP13380 | 3.7V | 650mAh | 5C | 13.80 | 37.80 | 43-48mΩ | 14.3g |
| LP13430 | 3.7V | 880mAh | 5C | 13.80 | 42.80 | 42-47mΩ | 17.1g |
| LP14250 | 3.7V | 300mAh | 5C | 14.10 | 24.80 | 48-53mΩ | 8.9g |
| LP14280 | 3.7V | 450mAh | 5C | 14.10 | 27.30 | 46-51mΩ | 10.1g |
| LP14430A | 3.7V | 650mAh | 5C | 14.10 | 42.60 | 38-42mΩ | 16.7g |
| LP14430B | 3.7V | 920mAh | 5C | 14.10 | 42.60 | 22-27mΩ | 17.5g |
| LP14450 | 3.7V | 950mAh | 5C | 14.10 | 44.90 | 20-25mΩ | 18.8g |
| LP14500A | 3.7V | 800mAh | 3C | 14.10 | 48.50 | 34-38mΩ | 19.7g |
| LP14500B | 3.7V | 1000mAh | 5C | 14.10 | 48.50 | 21-24mΩ | 20.0g |
| LP14650 | 3.7V | 1100mAh | 8C | 14.10 | 64.85 | 16-19mΩ | 26.0g |
| LP15270 | 3.7V | 400mAh | 5C | 14.60 | 26.60 | 35-40mΩ | 9.5g |
| LP16280 | 3.7V | 600mAh | 5C | 16.55 | 28.00 | 18-23mΩ | 17.0g |
| LP16310 | 3.7V | 650mAh | 5C | 16.55 | 29.55 | 32-37mΩ | 15.6g |
| LP16340A | 3.7V | 600mAh | 10C | 16.55 | 33.20 | 18-23mΩ | 17.0g |
| LP16340B | 3.7V | 700mAh | 5C | 16.55 | 33.20 | 27-32mΩ | 17.6g |
| LP16450 | 3.7V | 1000mAh | 10C | 16.55 | 43.80 | 19-24mΩ | 23.5g |
| LP16500 | 3.7V | 1200mAh | 5C | 16.55 | 48.85 | 20-25mΩ | 27.2g |
| LP16650 | 3.7V | 1600mAh | 3C | 16.55 | 48.85 | 32-37mΩ | 34.3g |
| LP18350A | 3.7V | 800mAh | 10C | 18.20 | 34.00 | 20-25mΩ | 21.4g |
| LP18350B | 3.7V | 900mAh | 5C | 18.20 | 34.00 | 30-35mΩ | 21.4g |
| LP18500A | 3.7V | 1200mAh | 3C | 18.20 | 48.80 | 39-44mΩ | 31.0g |
| LP18500B | 3.7V | 1200mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 31.0g |
| LP18500C | 3.7V | 1400mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 32.8g |
| LP18500D | 3.7V | 2100mAh | 5C | 18.30 | 48.60 | 32-37mΩ | 34.7g |
