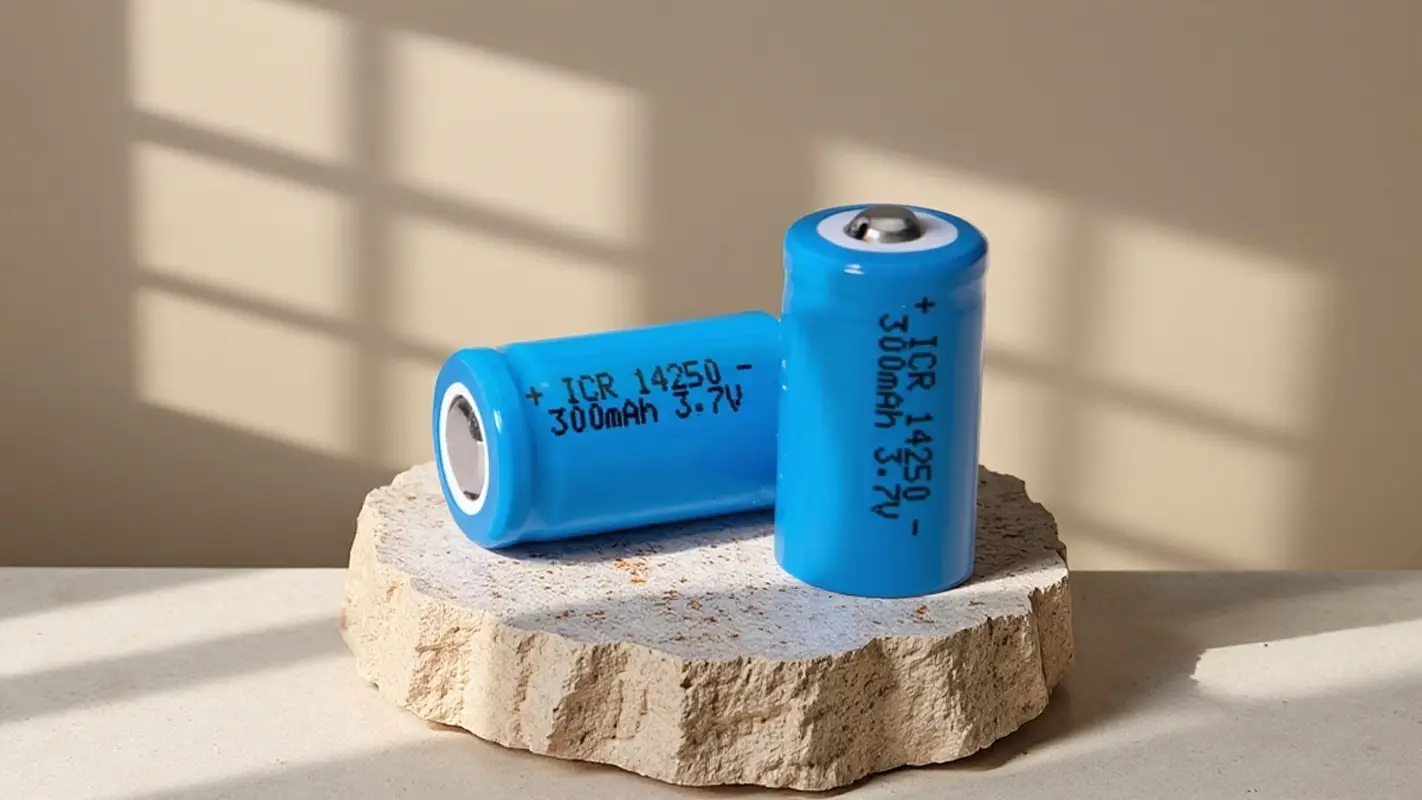

Li ion Rechargeable Battery 3.7V LP14250
Competitive wholesale pricing, full product range
Join our global Li-ion battery reseller and distributor network. Competitive wholesale pricing, full product range, 20+ years in the industry. Apply to become an authorized distributor today.
Battery Type |
Li ion Battery (Lthium-ion Battery) |
Part Number |
LP14250 / 14250 / ICR14250 |
Voltage @ Capacity |
3.7V @ 300mAh 1.11Wh |
Protection Circuit |
- |
Thermistor (NTC) |
- |
Wires |
- |
Connector |
Button top |
Dimension |
φ14.0 x 28.0mm |
Charge Current |
1.0C to 2.0C |
Discharge Current |
1.0C to 5.0C |
Other |
Fill out my online form.
Li ion Battery List
| part number | Voltage | Capacity | C-Rate | Diameter (mm) | Height (mm) | Resistance | Weight |
| LP10180 | 3.7V | 80mAh | 5C | 10.25 | 17.50 | 120-125mΩ | 4.0g |
| LP10200 | 3.7V | 110mAh | 5C | 10.25 | 19.50 | 100-105mΩ | 4.5g |
| LP10280 | 3.7V | 180mAh | 5C | 10.25 | 27.30 | 90-95mΩ | 5.0g |
| LP10400 | 3.7V | 320mAh | 5C | 10.25 | 39.40 | 50-54mΩ | 7.7g |
| LP10440 | 3.7V | 350mAh | 5C | 10.25 | 43.00 | 46-50mΩ | 8.4g |
| LP10840 | 3.7V | 700mAh | 5C | 10.25 | 83.50 | 17-22mΩ | 20.0g |
| LP12630 | 3.7V | 700mAh | 5C | 12.70 | 62.85 | 17-22mΩ | 20.9g |
| LP12650 | 3.7V | 750mAh | 5C | 12.70 | 64.85 | 17-22mΩ | 21.2g |
| LP13310 | 3.7V | 450mAh | 5C | 13.10 | 30.50 | 38-43mΩ | 10.0g |
| LP13380 | 3.7V | 650mAh | 5C | 13.80 | 37.80 | 43-48mΩ | 14.3g |
| LP13430 | 3.7V | 880mAh | 5C | 13.80 | 42.80 | 42-47mΩ | 17.1g |
| LP14250 | 3.7V | 300mAh | 5C | 14.10 | 24.80 | 48-53mΩ | 8.9g |
| LP14280 | 3.7V | 450mAh | 5C | 14.10 | 27.30 | 46-51mΩ | 10.1g |
| LP14430A | 3.7V | 650mAh | 5C | 14.10 | 42.60 | 38-42mΩ | 16.7g |
| LP14430B | 3.7V | 920mAh | 5C | 14.10 | 42.60 | 22-27mΩ | 17.5g |
| LP14450 | 3.7V | 950mAh | 5C | 14.10 | 44.90 | 20-25mΩ | 18.8g |
| LP14500A | 3.7V | 800mAh | 3C | 14.10 | 48.50 | 34-38mΩ | 19.7g |
| LP14500B | 3.7V | 1000mAh | 5C | 14.10 | 48.50 | 21-24mΩ | 20.0g |
| LP14650 | 3.7V | 1100mAh | 8C | 14.10 | 64.85 | 16-19mΩ | 26.0g |
| LP15270 | 3.7V | 400mAh | 5C | 14.60 | 26.60 | 35-40mΩ | 9.5g |
| LP16280 | 3.7V | 600mAh | 5C | 16.55 | 28.00 | 18-23mΩ | 17.0g |
| LP16310 | 3.7V | 650mAh | 5C | 16.55 | 29.55 | 32-37mΩ | 15.6g |
| LP16340A | 3.7V | 600mAh | 10C | 16.55 | 33.20 | 18-23mΩ | 17.0g |
| LP16340B | 3.7V | 700mAh | 5C | 16.55 | 33.20 | 27-32mΩ | 17.6g |
| LP16450 | 3.7V | 1000mAh | 10C | 16.55 | 43.80 | 19-24mΩ | 23.5g |
| LP16500 | 3.7V | 1200mAh | 5C | 16.55 | 48.85 | 20-25mΩ | 27.2g |
| LP16650 | 3.7V | 1600mAh | 3C | 16.55 | 48.85 | 32-37mΩ | 34.3g |
| LP18350A | 3.7V | 800mAh | 10C | 18.20 | 34.00 | 20-25mΩ | 21.4g |
| LP18350B | 3.7V | 900mAh | 5C | 18.20 | 34.00 | 30-35mΩ | 21.4g |
| LP18500A | 3.7V | 1200mAh | 3C | 18.20 | 48.80 | 39-44mΩ | 31.0g |
| LP18500B | 3.7V | 1200mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 31.0g |
| LP18500C | 3.7V | 1400mAh | 5C | 18.20 | 48.80 | 22-27mΩ | 32.8g |
| LP18500D | 3.7V | 2100mAh | 5C | 18.30 | 48.60 | 32-37mΩ | 34.7g |
