LiPo Battery LP653759 3.7V 1550mAh for rebar detecter

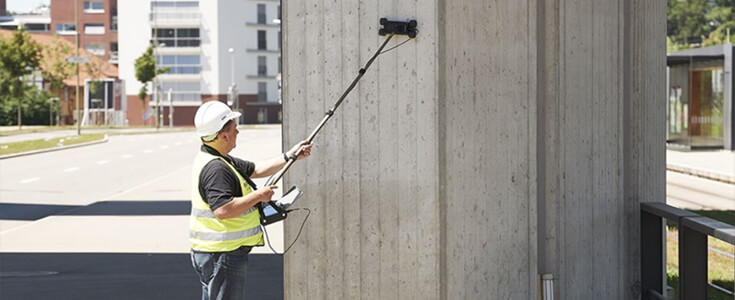

The rebar detecter is the greatly reliable detector for rebar apprehension, determining the depth of rebar coverage and the measurement of rebar diameter with lithium polymer battery LP653759 3.7V 1550mAh. That uses visual and acoustics to locate the rebar and visualize the real-time rebar. It crosses hard-to-see solid surfaces, allowing the contractor to “see” the location of the rebar below the detailed surface.The rebar detecter is a very simple, cordless design, easy one-handed operation, and has an automatic user interface. All functions can be programmed/activated using two function keys and navigation.


Built-in Lithium polymer Battery 1550mAh, only 31g, which means that the rebar detecter is light and strong, and will not be affected by the rough environment.It makes it very suitable for use in construction sites. In addition, the rebar detecter can record measurement data either manually or automatically. Manual data storage allows the customer choose by free to save the concrete cover and the bar diameter separately. Automatic data storage is designed for surface scanning. Every time a rebar is detected, the cover value is stored automatically. Moreover, “ProfoLink software” is perfect Matches with the rebar detects, which is a professional tool for analyzing measurement results.It significantly improves the test efficiency of the construction site.


The rebar detector that only needs a lithium polymer battery of capacity 1500mAh, enables to measure 99 times and scan 500 objects.It is successful challenge results in the construction industry, marking the high-tech brings the efficiency and convenience to workers.

Measuring Range
Power Supply
Power source 2 x lithium polymer batteries
Voltage range 3.6 V to 1.8 V
Current Consumption
Power on, backlight off ~ 50 mA
Power on, backlight on ~ 200 mA
Sleep mode ~ 10 mA
Power off < 1 μA
Battery Lifetime
Backlight off > 50 h
Backlight on > 15 h
Time Outs
Sleep mode 30 s
Auto shut down 120 s
Environmental Conditions
Temperature range -10o to 60o C (14o to 140oF)
Humidity range 0 to 100% RH
Protection class IP54

Battery Type Lithium Polymer Battery
Part Number LP653759
Voltage @ Capacity 3,7V @ 1550mAh
Configuration 1S1P
Wires AWG 26, 50mm x 2pcs
Connector NO
Protection Circuit Overdischarge Trip Voltage 3.0V
Thermistor (NTC) 10K
Dimension 59 x 37 x 6,5mm
Charge Temperature 0°C to +45°C
Disharge Temperature -20°C to +60°C
Storage Temperature -20°C to +45°C



Similar batteries:

LP603759 3,7V@1500mAh 57*37*6,0mm

LP503759 3,7V@1100mAh 59*37*5,0mm

LP703759 3,7V@1400mAh 59*37*7,0mm

LP903759 3,7V@2200mAh 59*37*9,0mm
